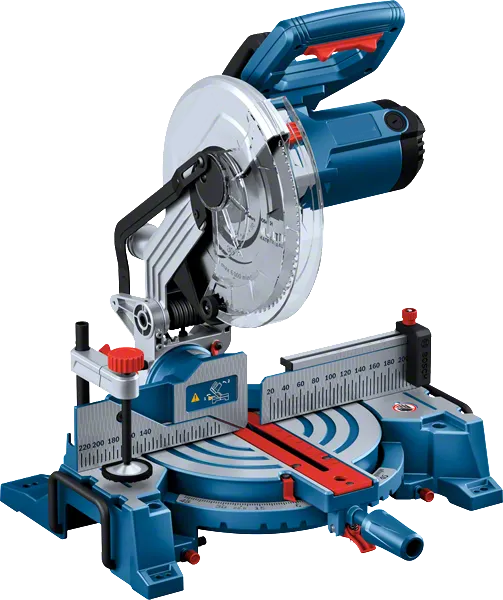

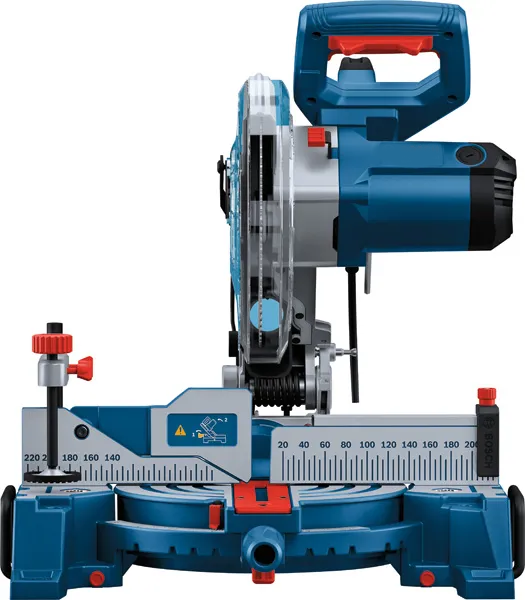

Mitre Saw GCM 254 Professional

The GCM 254 Professional is designed for precision, stability, and ease of use, delivering consistent and accurate crosscuts at 45°. Its detachable extension increases cutting stability, while the integrated length stop allows for precise repetitive cuts, making it ideal for professional woodworking and aluminium work.

Technical Data

• Rated power input: 1,750 W

• Saw blade diameter: 254 mm

• Bevel adjustment: 45° left / 0° right

• Mitre adjustment: 47° left / 52° right

• No-load speed: 5,000 rpm

• Saw blade bore diameter: 30 mm

• Cutting capacity at 0°: 90 x 130 mm

• Cutting capacity at 45° mitre: 90 x 91 mm

• Cutting capacity at 45° bevel: 60 x 130 mm

• Tool dimensions (W x L x H): 477 x 559 x 567 mm

• Weight: 11.1 kg

Highlights

• High-precision mitre and bevel cuts for consistent and professional results.

• Detachable extension enables stable cutting of longer and larger materials.

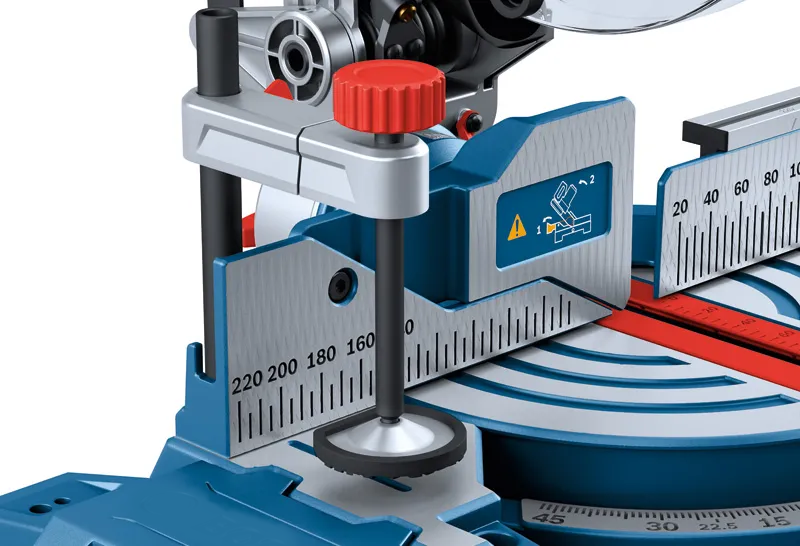

• Integrated length stop allows for accurate repeated cuts.

• Designed for long service life with robust construction.

Equipment and Application

Ideal for carpenters, glaziers, roofers, and other professional trades, the GCM 254 Professional performs precise and repetitive cuts in wood and aluminium with maximum stability and accuracy.
