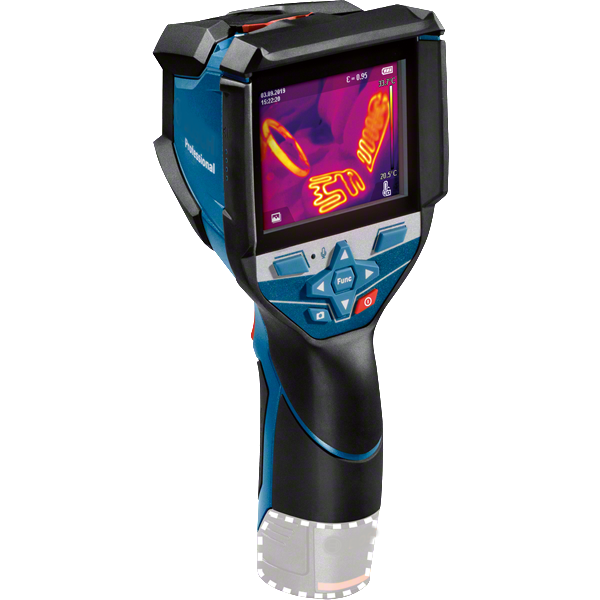

GTC 600 C Professional Thermal Camera

High thermal resolution and wide measuring range for maximum applications
Voice notes and the ThermalOn app allow easy documentation of thermal images
The intuitive user interface and perfectly integrated features deliver successful results with minimal clicks

Technical data
Additional data
Battery voltage: 12.0 V
Measuring range: -20 °C to +600 °C
IR measurement accuracy: ±2.0 °C
Measurement application: Thermal imaging
Data transfer: Wi-Fi, USB-C®
Thermal sensitivity (NETD): ≤50 mK
IR sensor size: 256 x 192 pixels
Resolution: 0.1 °C
Number of measuring points: 49,152
Frame buffer (number of images): 600
Image file format: .jpg
Shock protection: 2 m
Dust and splash protection: IP54 (except for the battery or battery adapter)
Weight: 0.6 kg
Display size: 3.5"
Operating temperature: -10 – 45 °C
Storage temperature: -20 – 50 °C
Minimum focal distance: 0.3 m
Thermal image refresh rate: 9 Hz
Image memory (number of images with audio): 350
Audio file format: .wav

GTC 600 C Professional: Additional information
Product highlights
Quickly and easily detects temperature differences, even outdoors – the GTC 600 C Professional thermal camera provides detailed visualizations of temperature variations and enables smart documentation. It features high thermal resolution and a wide measuring range for maximum thermal measurement applications. Handy voice notes, the ThermalOn app, and GTC Transfer software make documenting thermal images simple. An intuitive user interface and well-integrated features, such as emissivity presets and an enhanced gallery with IR and visual images, deliver successful results with minimal effort.

Equipment and application

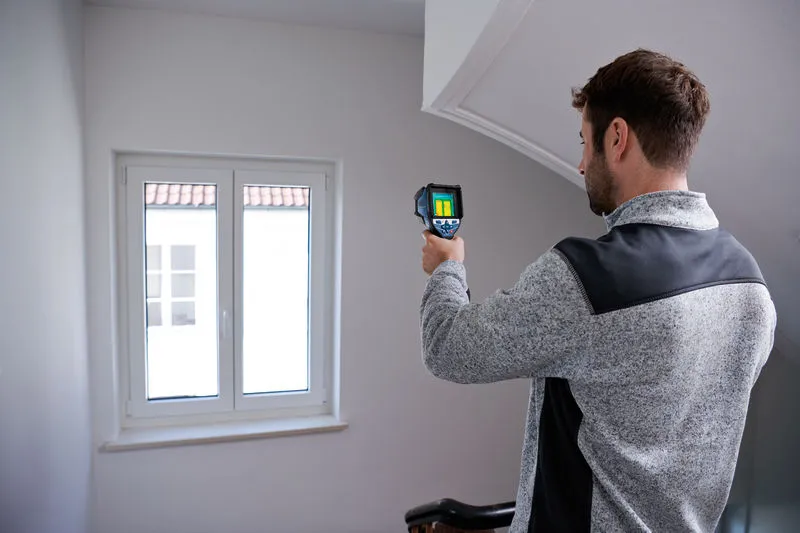

This tool is ideal for detecting insulation problems and unwanted hot or cold spots.

Additional information
The robust GTC 600 C withstands drops from heights up to 2 m, features IP54 protection, and can be used on jobsites even under tough conditions. In addition, 12 V lithium batteries provide excellent runtime. Documentation and sharing of measured values is easy with the companion app thanks to the Simple Exchange data transfer function. This thermal camera offers high accuracy of ±2.0 °C and a wide temperature range from -20 °C to +600 °C.
