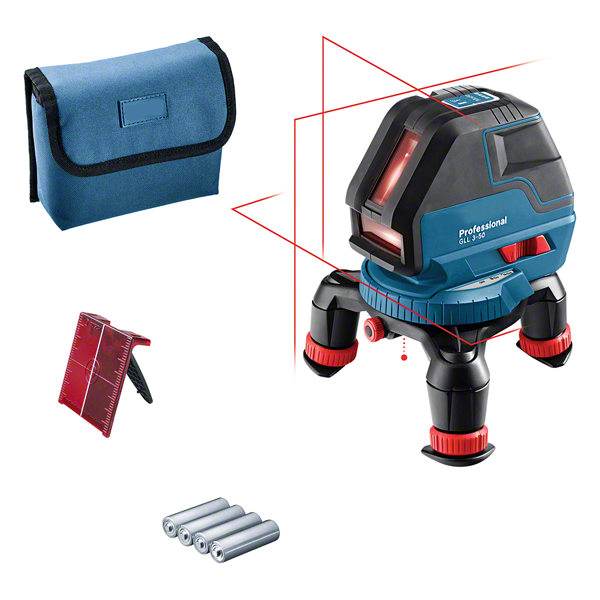

GLL 3-50 Professional Floor Laser Level

Two vertical laser lines, one horizontal laser line, one plumb point: ideal for a wide range of tasks such as framing
Compact design makes handling easy

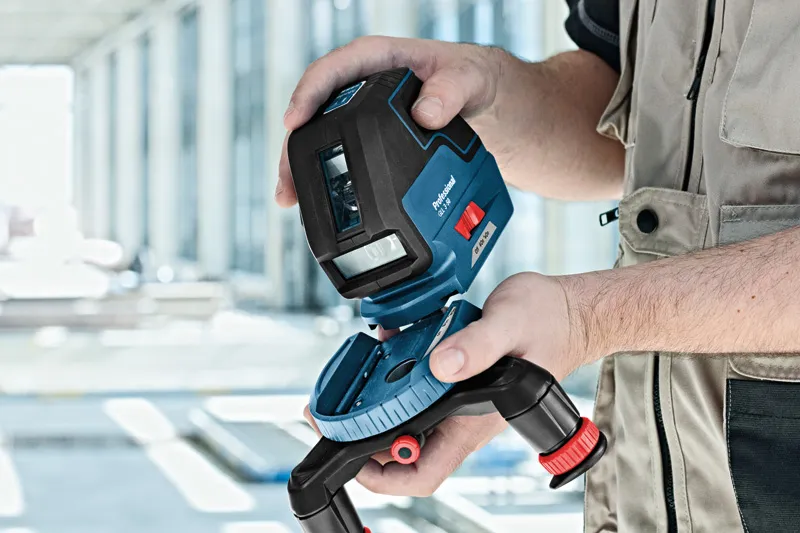

The mini rotating tripod with adjustable-height foot and fine adjustment of the vertical line provide great flexibility

Technical data
Additional data
Tripod thread: 1/4", 5/8"
Laser diode: 630 – 650 nm, < 1 mW
Operating temperature: -10 – 40 °C
Storage temperature: -20 – 70 °C
Laser class: 2
Working range, value: 10 m
Range with receiver: 50 m
Accuracy: ± 0.3 mm/m
Laser point range, max.: 5 m (downwards)
Self-leveling range: ± 4°
Leveling time: 4 s
Dust and splash protection: IP54
Power supply: 4 x 1.5 V LR6 (AA)
Runtime (max.): 6 h
Approx. weight: 0.94 kg
Laser line color: red
Plumb point color: red
Projection: 3 lines + 1 plumb point
Plumb point accuracy: ± 0.6 mm/m

GLL 3-50 Professional: Additional information
Product highlights
Complex leveling made simple – the GLL 3-50 Professional cross line laser is easy to use and designed to be versatile for all standard leveling and transfer applications. Two vertical laser lines, a single horizontal laser line, and the plumb point make handling a wide variety of tasks straightforward. Compactly designed, the GLL 3-50 Professional offers comfortable handling and control. For practical laser line positioning, it comes with a mini rotating tripod with an adjustable-height foot and fine adjustment for the vertical line.

Equipment and application

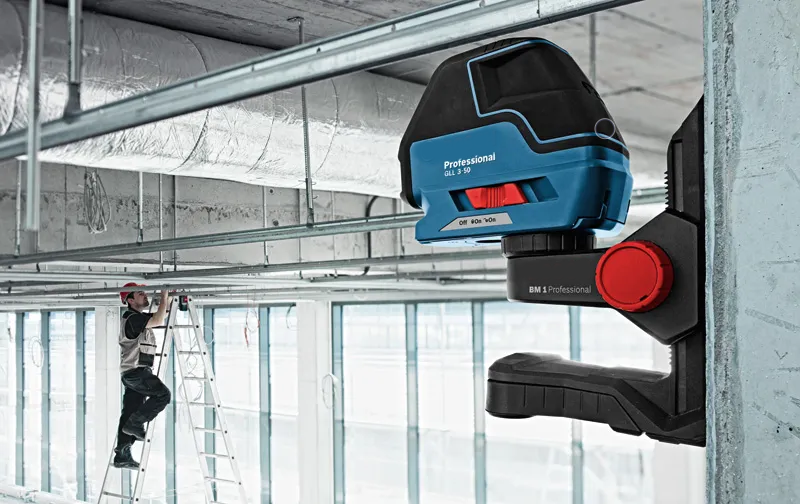

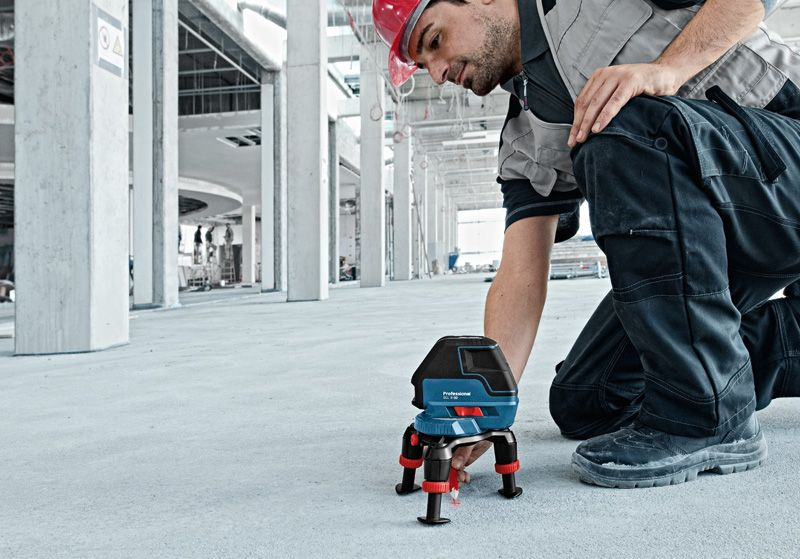

It is suitable for various indoor applications such as mounting shelves or windows, installing drainpipes, or tiling walls. A second vertical line also makes it ideal for quick framing.

Additional information
The GLL 3-50 Professional provides laser lines with a working range of 10 m, which can be extended up to 50 m using the optional LR 2 Professional laser receiver. The plumb point range is up to 5 m. This cross line laser self-levels in less than 4 seconds. It is durable, with IP54 dust and splash protection.
