GCL 2-15 G Professional Combi Laser

Green horizontal and vertical laser lines for up to four times greater visibility than red lines
Precise transfer applications thanks to red plumb points

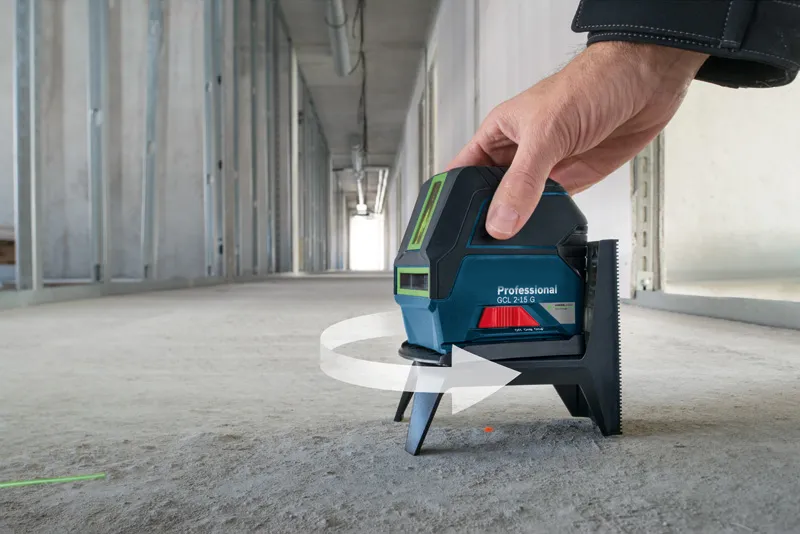

The RM 1 Professional rotating mount allows the laser lines to be easily aligned around the plumb points

Technical data
Additional data
Tripod thread: 1/4", 5/8"
Laser diode: Line: 500 – 540 nm, < 10 mW, Point: 630 – 650 nm, < 1 mW
Operating temperature: -10 – 50 °C
Storage temperature: -20 – 70 °C
Laser class: 2
Working range, value: 15 m
Range with receiver: 10 m
Accuracy: ± 0.3 mm/m
Laser point range, max.: 10 m (top), 10 m (bottom)
Self-leveling range: ± 4°
Leveling time: 4 s
Dust and splash protection: IP54
Power supply: 3 x 1.5 V LR6 (AA)
Runtime (max.): 6 h in cross-line and point mode, 8 h in cross-line mode, 10 h in line and point mode, 12 h in line mode, 22 h in point mode
Approx. weight: 0.49 kg
Laser line color: green
Projection: 2 lines / 2 points
Plumb point accuracy: ± 0.7 mm/m

GCL 2-15 G Professional: Additional information
Product highlights
Up to four times greater visibility and fully versatile – that’s the GCL 2-15 G Professional combi laser. The two laser lines enable precise vertical and horizontal alignment, while the red plumb points simplify transfer applications. Laser lines are easily aligned around the plumb points with the versatile RM 1 Professional rotating mount.

Equipment and application

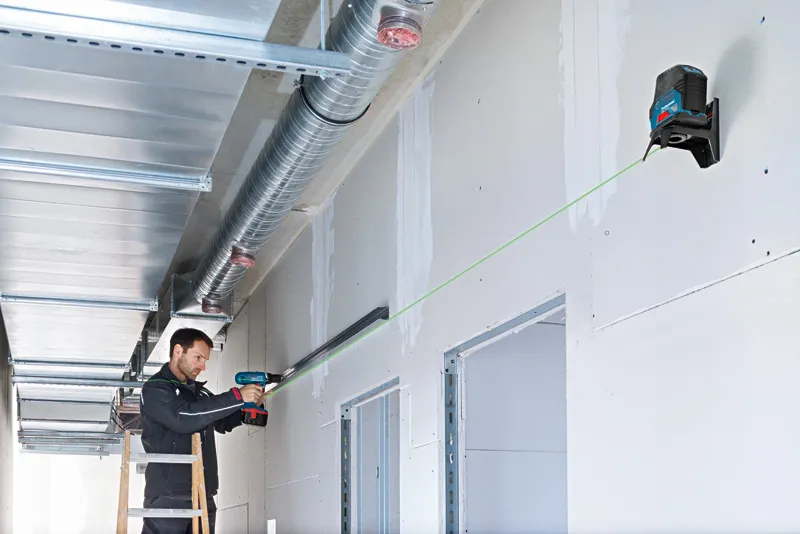

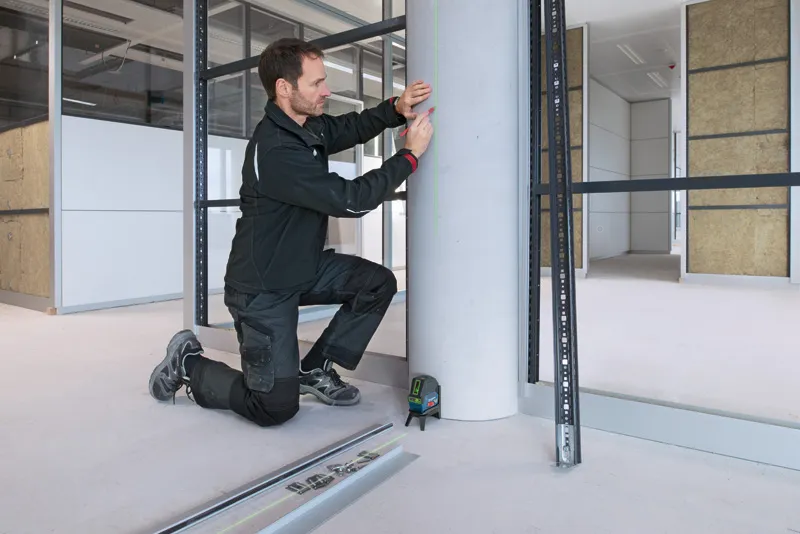

The GCL 2-15 G Professional is suitable for a variety of tasks, such as installing suspended ceilings, laying drainage pipes, and positioning floors. It also allows point transfers for lighting installations.

Additional information
The GCL 2-15 G Professional has a laser line working range of up to 15 m and self-levels in less than 4 seconds. This laser level is ideal for use with the RM 1 Professional, which can be quickly attached via a simple sliding mechanism. It is durable with IP54 dust and splash protection. When the tool is switched off, the pendulum automatically locks for safe transport and convenient storage.
