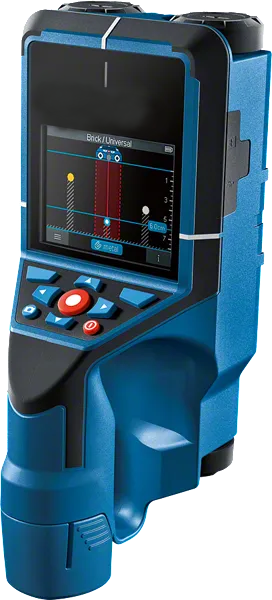

D-tect 200 C Professional Wall Scanner

Radar Technology and modern user interface for precision, increased safety, and clear illustration of detected objects
Multiple viewing modes provide the best results in a variety of situations
Screenshot function supports quick and easy storage; screenshots can be downloaded via USB-C® and SD card slot

Technical data
Additional data
Battery voltage: 12.0 V
Dust and splash protection: IP5X
Radar technology: yes
Max. detection depth: 200 mm
Detectable objects: magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live conductors, non-live conductors, empty plastic pipes, water-filled plastic pipes, wooden substructures
Detection depth, dry concrete, max.: 200 mm
Detection depth, green concrete, max.: 60 mm
Detection depth, other wall types, max.: 80 mm
Detection depth, wooden substructures, max.: 38 mm
Accuracy: ± 5 mm
Views: Object view, Spot view, 2D signal view, Signal view
Wall types: Brick/Universal, Concrete, Drywall, Panel heating, Green concrete, Horizontal perforated tile, Vertical perforated tile
Documentation via: USB-C, SD card
Updatable: yes
Material identification: Live cable, Magnetic metal, Non-magnetic metal, Non-metallic material
Power supply: 12 V lithium battery, 4 x 1.5 V LR6 (AA), 4 x 1.2 V HR06 (AA) batteries
Approx. weight: 0.7 kg
Additional function: Leak detection, distance measurement

D-tect 200 C Professional Wall Scanner: Additional information
Product highlights
The D-tect 200 C Professional detects all common objects and illustrates them clearly, making documentation easier. Equipped with radar technology and an improved user interface, it contributes to safer and more efficient construction work. Multiple viewing modes make it easy to choose the best option for different applications, such as Spot View, which significantly simplifies detection in hard-to-reach places. To provide solid evidence, the innovative screenshot function allows quick documentation.

Equipment and application

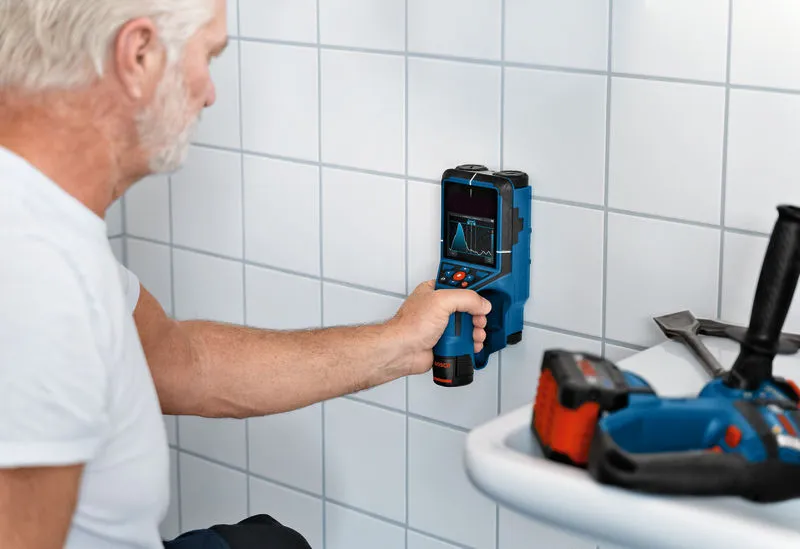

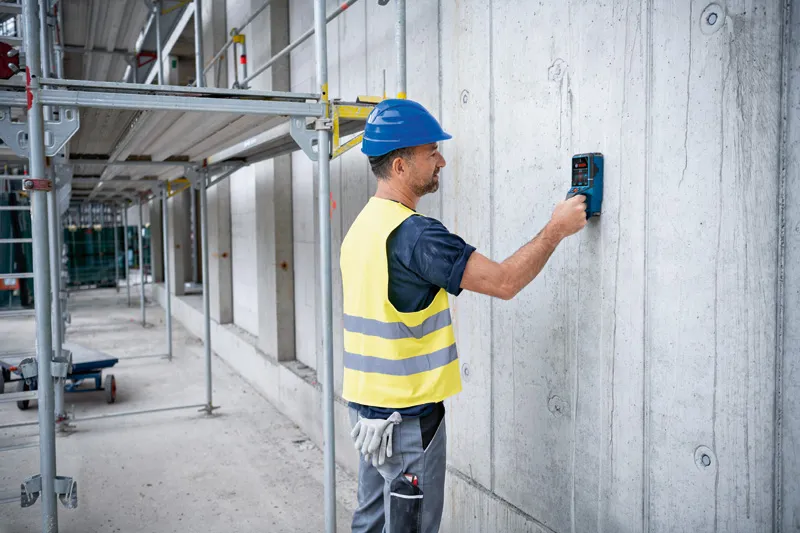

The D-tect 200 C Professional supports both indoor and outdoor work, prevents damage during drilling, and measures concrete coverage.

Additional information
The wall scanner detects objects at depths of up to 200 mm and indicates object depth.
